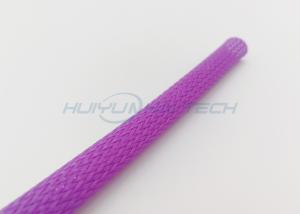

HighTtemperature PET Electrical Braided Cable Sleeve For Electrical Appliance
It's Easy to Install
Unlike other techniques and products designed for cable management, expandable sleeving is quick and economical to install over virtually any length. Just start at one end and walk the sleeving down the entire length of the bundle. The maximum installable length is only limited by the length of the application to be covered. Bundles of wires up to 1,000 feet or more can be sleeved quickly and easily, with no special tools or skills. Additionally, expandable sleeving will stretch up to 4 times its nominal diameter to accommodate plugs, connectors or inline splices with ease.
OverExpanded
Expandable sleeving will accommodate plugs and connectors up to 4 times the nominal sleeving diameter. Lengths up to 1,000 feet or longer can be covered quickly and easily.
1. Description
1. Flame-retardant and halogen-free.
2. Can be cut with a common scissors without obvisous fray.
3. Softer and easier to be use on the outdoor field .
4. It offers durable abrasion resistance in a wide range of industrial applications.
5. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
6. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
7. Suitable for constructing and protecting cable harnesses or tidying cable looms.
8. Sleeve expands to allow the cables to pass through and then automatically shrinks back.
9. Multiple sizes and lengths available .
Main characteristics and advantages:
2. Application
Widely used in bounding and protecting of electrical cables, automobile and aviation sectors.
It's used to cover cables, wire harnesses, tubes, industrial hoses,Automotive,Automatic equipment,
Sizes
Nominal
Size | Product
Part # | Expansion Range | Spool Put-Ups |
| Min. | Max. | Bulk | Shop |
1/16"
1/8"
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1 1/4"
1 1/2"
1 3/4"
2"
2 1/2"
3" | NS0.06
NS0.13
NS0.25
NS0.38
NS0.50
NS0.63
NS.75
NS1.00
NS1.25
NS1.50
NS1.75
NS2.00
NS2.50
NS3.00 | 3/64"
3/32"
1/8"
3/16"
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1 1/4"
1 1/2"
1 3/4"
2 1/2" | 3/32"
1/4"
7/16"
1/2"
3/4"
1"
1 1/4"
1 5/8"
1 3/4"
2 1/8"
2 3/4"
3 1/2"
3 5/8"
4 3/4" | 1,000'
1,000'
1,000'
500'
500'
500'
250'
250'
250'
200'
200'
200'
200'
100' | 250'
225'
200'
125'
100'
100'
75'
65'
50'
40'
30'
50'
50'
50' |
| 4" | NS94.00BK | 4" | 6 1/2" | 100' | 50' |
